Optical Fiber Identifier---------3306B Series

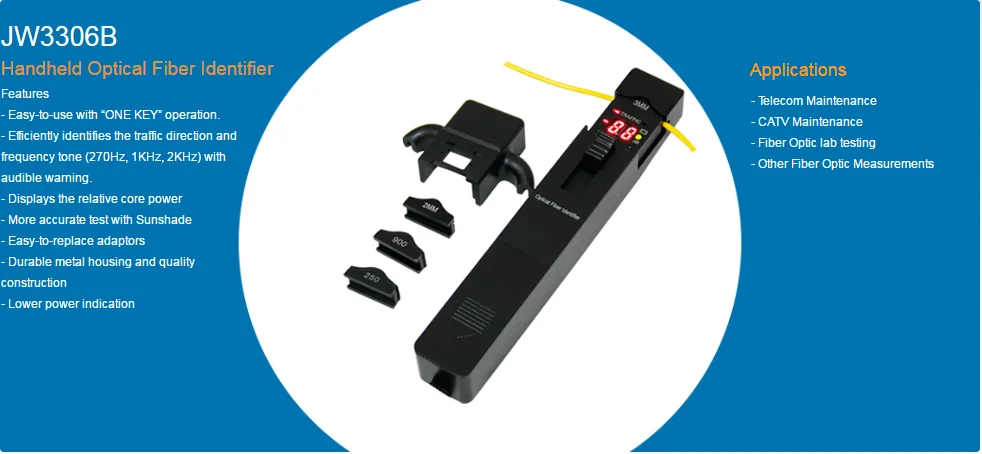

3306B 3306B Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bend fiber. When the traffic is present,the intermittently audible tone is activated.The 3306B optical fiber identifier also recognize the modulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated.There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The 3306B optical fiber identifier is powered by a 9V alkaline battery .
Fetures :
* Easy-to-use with “ONE KEY” operation.
* Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
* Displays the relative core power
* More accurate test with Sunshade
* Easy-to-replace adaptors
* Durable metal housing and quality construction
* Lower power indication
Specifications:
Type
3306B
Identified Wavelength Range
800-1700 nm
Identified Signal Type
CW, 270Hz±5%,1kHz±5%,2kHz±5%
Detector Type
Ø1mm InGaAs 2pcs
Adapter Type
Ø0.25 (Applicable for Bare Fiber),Ø0.9 (Applicable for Ø0.9 Cable )
Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable )
Signal Direction
Left & Right LED
Singe Direction Test Range
(dBm, CW/0.9mm bare fiber)
-46~10(1310nm)
-50~10(1550nm)
Signal Power Test Range
(dBm, CW/0.9mm bare fiber)
-50~+10
Signal Frequency Display (Hz)
270, 1k, 2k
Frequency Test Range
(dBm, Average Value)
Ø0.9, Ø2.0, Ø3.0
-30~0 (270Hz,1KHz)
-25~0 (2KHz)
Ø0.25
-25~0 (270Hz,1KHz)
-20~0 (2KHz)
Insertion Loss(dB, Typical Value)
0.8 (1310nm)
2.5 (1550nm)
Alkaline Battery(V)
9
Operating Temperature(℃)
-10-+60
Storage Temperature(℃)
-25-+70
Dimension (mm)
196X30.5X27
Weight (g)
200
Standard Packages
MODEL
INCLUDES
3306B
3306B Optical Fiber Identifier, 4pcs adapter heads, Sunshade, Alkaline battery, User Manual, Cotton Stick and Soft Carrying case.
* Easy-to-use with “ONE KEY” operation.
* Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
* Displays the relative core power
* More accurate test with Sunshade
* Easy-to-replace adaptors
* Durable metal housing and quality construction
* Lower power indication
Type | 3306B | |
Identified Wavelength Range | 800-1700 nm | |
Identified Signal Type | CW, 270Hz±5%,1kHz±5%,2kHz±5% | |
Detector Type | Ø1mm InGaAs 2pcs | |
Adapter Type | Ø0.25 (Applicable for Bare Fiber),Ø0.9 (Applicable for Ø0.9 Cable ) | |
| Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable ) | |
Signal Direction | Left & Right LED | |
Singe Direction Test Range (dBm, CW/0.9mm bare fiber)
| -46~10(1310nm) | |
-50~10(1550nm) | ||
Signal Power Test Range (dBm, CW/0.9mm bare fiber) | -50~+10 | |
Signal Frequency Display (Hz) | 270, 1k, 2k | |
Frequency Test Range (dBm, Average Value)
| Ø0.9, Ø2.0, Ø3.0
| -30~0 (270Hz,1KHz) |
-25~0 (2KHz) | ||
Ø0.25
| -25~0 (270Hz,1KHz) | |
-20~0 (2KHz) | ||
Insertion Loss(dB, Typical Value)
| 0.8 (1310nm) | |
2.5 (1550nm) | ||
Alkaline Battery(V) | 9 | |
Operating Temperature(℃) | -10-+60 | |
Storage Temperature(℃) | -25-+70 | |
Dimension (mm) | 196X30.5X27 | |
Weight (g) | 200 |
Standard Packages
MODEL | INCLUDES |
3306B | 3306B Optical Fiber Identifier, 4pcs adapter heads, Sunshade, Alkaline battery, User Manual, Cotton Stick and Soft Carrying case. |
