  • EXFO MaxTester 730C FTB-730C-SM2 FTTx/PON SM OTDR 1310/1550nm 39/38dB OTDR

EXFO MaxTester 730C FTB-730C-SM2 FTTx/PON SM OTDR 1310/1550nm 39/38dB OTDR

0 stars, based on 0reviews
Price:
$6325.00$6200.00 / unit
Quantity: - + 100items available
Contact Us

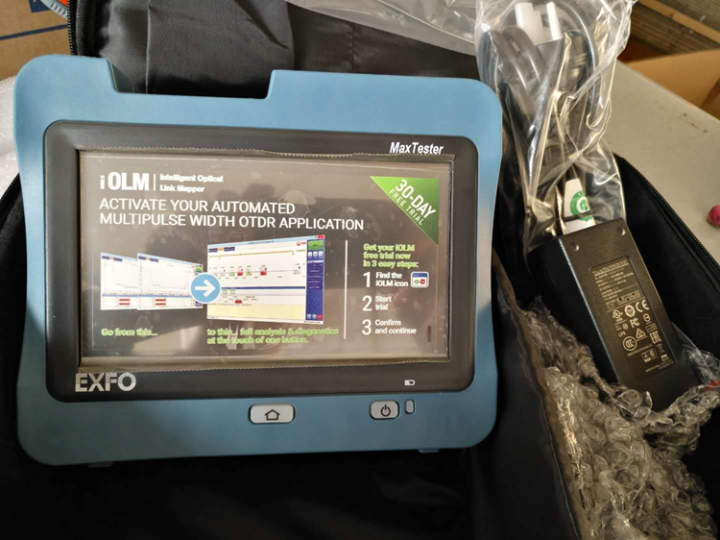

EXFO FTB-730C-SM2 PON FTTx/MDU OTDR



EXFO FTB-730C-SM2 PON FTTx/MDU OTDR Series is the first tablet-inspired OTDR line that is handy, lightweight and rugged enough for any outside plant environment. With a 7-inch, outdoor-enhanced touchscreen–the most efficient handheld display in the industry–it delivers an unprecedented user experience.



Product details



Display

7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT

Interfaces

Two USB 2.0 ports
RJ45 LAN 10/100 Mbit/s

Storage

2 GB internal memory (20 000 OTDR traces, typical)

Power supply

Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz

Wavelength (nm) b

1310 ± 30/1550 ± 30/1625 ± 10

SM live port built-in filter

1625 nm: highpass >1595 nm
isolation >50 dB from 1270 nm to 1585 nm

1650 nm: bandpass 1650 nm ± 7 nm
isolation >50 dB out of 1650 nm ± 10 nm

Dynamic range (dB) c

39/38/39/39

Event dead zone (m) d

0.5

Attenuation dead zone (m) e

2.5





 Features:

Handy, lightweight, powerful, tablet-inspired design

7-inch, outdoor-enhanced touchscreen-the biggest in the handheld industry

12 hour antonomy

Dead zones: EDZ 0.5m, ADZ 2.5m

Dynamic range of 39/38/39dB

Rugged design built for outside plant

iOLM-ready: intelligent and dynamic

Application that turns complex OTDR trace analysis into a one-touch task



Applications:

FTTx/PON testing though splitters (up to 1x128)

Access network testing (P2P)

Metro links testing (P2P)

Live fiber troubleshooting
