SC to MINI-SC SM Simplex G657A1 Outdoor Waterproof LSZH Fiber Jumper Patch Cord for huawei

0 stars, based on 0reviews
Price:
$9.50 / piece
Length
  • 10M
  • 20M
  • 30M
  • 40M
  • 50M
  • 60M
  • 70M
  • 80M
  • 90M
  • 100M
Quantity: - + 10000items available
Contact Us

Item specifics

Length:
1M,2M,3M,5M,7M,10M,15M,20M,other length



SC to MINI-SC SM Simplex G657A1 Outdoor Waterproof LSZH Fiber Jumper Patch Cord for huawei




3.0mm Cable




2.0*3.0mm Cable


2.0*5.0mm Cable


5.0mm Cable


4.0*7.0mm Cable




Fiber optic communications in harsh outdoor environments



Outdoor communication equipment connection



waterproof fiber equipment SC port Remote wireless base station



FTTH wiring project



Features:



Cost effective solution for in house termination



Low insertion loss and added loss



IP67 water, dust proof and corrosion resistant



The material in the jumper cable are all-weather and UV-resistant


Performance:

Item

Data

Insertion Loss

≤0.3dB

Return Loss

SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB

Mechanical life

500cycles

Working temperature

-20°C~+70°C

Storage temperature

-20°C~+70°C

Protection Level

IP67

Tensile Data

Tensile between junction and fiber cable≥100N






Cable Structure:

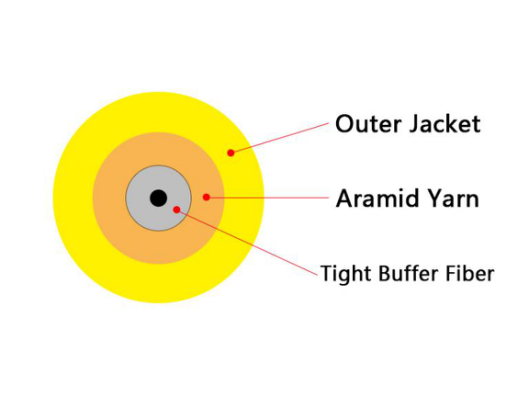

Type1:  1×Tight Buffer(0.9mm)+Kevlar+Jacket  OD=3.0mm



Cable Count

OD (mm)

Weight

Tensile strength

General attenuation

Minimal Bending radius

Storage temperature

Short term

Long term

Singlemode

Multimode

1

3.0±0.2

7kg

400N

200N

1310nm ≤0.4dB/km

850nm ≤3.0dB/km

20D

-20+70

1550nm ≤0.3dB/km

1300nm ≤1.0dB/km







Cable Structure:






Type2:  1×Coating Fiber(0.25mm)+2*FRP or Steel Wire+Jacket  OD=2.0*3.0mm



Cable Count

OD (mm)

Weight

Tensile strength

General attenuation

Minimal Bending radius

Storage temperature

Short term

Long term

Singlemode

Multimode

1

2.0*3.0

8kg

200N

100N

1310nm ≤0.4dB/km

850nm ≤3.0dB/km

20D

-20+70

1550nm ≤0.3dB/km

1300nm ≤1.0dB/km





Type3:  1×Coating Fiber(0.25mm)+2*FRP or Steel Wire+1*FRP or Steel                                Wire(1.0mm)+Jacket  OD=2.0*5.0mm



Cable Count

OD (mm)

Weight

Tensile strength

General attenuation

Minimal Bending radius

Storage temperature

Short term

Long term

Singlemode

Multimode

1

2.0±5.0

25kg

600N

300N

1310nm ≤0.4dB/km

850nm ≤3.0dB/km

20D

-20+70

1550nm ≤0.3dB/km

1300nm ≤1.0dB/km



Cable Structure:




Type4 1×Tight Buffer(0.9mm)+Kevlar+Inner Jacket(2.8mm)+Kevlar+Jacket  OD=5.0mm



Cable Count

OD (mm)

Weight

Tensile strength

General attenuation

Minimal Bending radius

Storage temperature

Short term

Long term

Singlemode

Multimode

1

5.0±0.2

30kg

1200N

600N

1310nm ≤0.4dB/km

850nm ≤3.0dB/km

20D

-20+70

1550nm ≤0.3dB/km

1300nm ≤1.0dB/km





Type5:  1×Tight Buffer(0.9mm)+Kevlar+Inner Jacket(2.5mm)+2*FRP or Steel     Wire(1.2mm)+Jacket  OD=4.0*7.0mm



Cable Count

OD (mm)

Weight

Tensile strength

General attenuation

Minimal Bending radius

Storage temperature

Short term

Long term

Singlemode

Multimode

1

4.0*7.0

45kg

1200N

600N

1310nm ≤0.4dB/km

850nm ≤3.0dB/km

20D

-20+70

1550nm ≤0.3dB/km

1300nm ≤1.0dB/km
