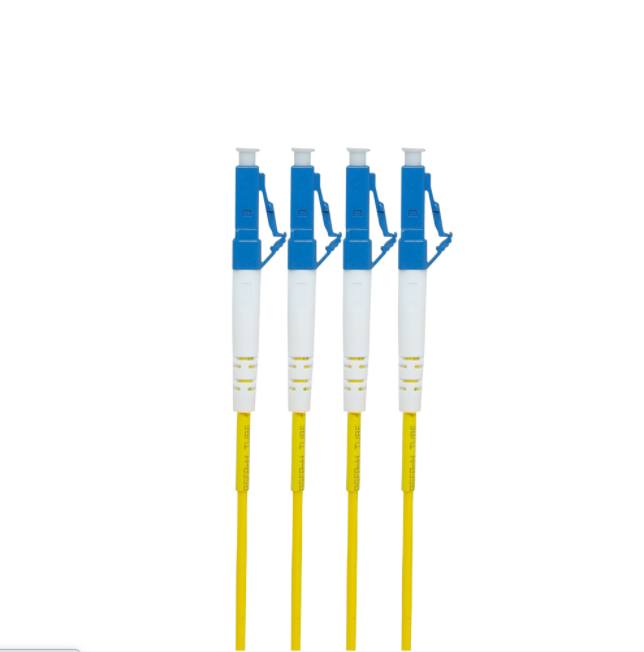

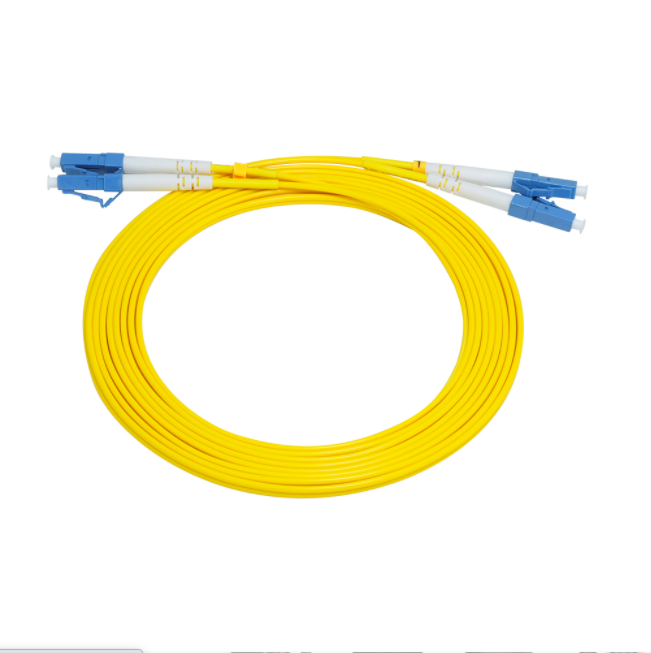

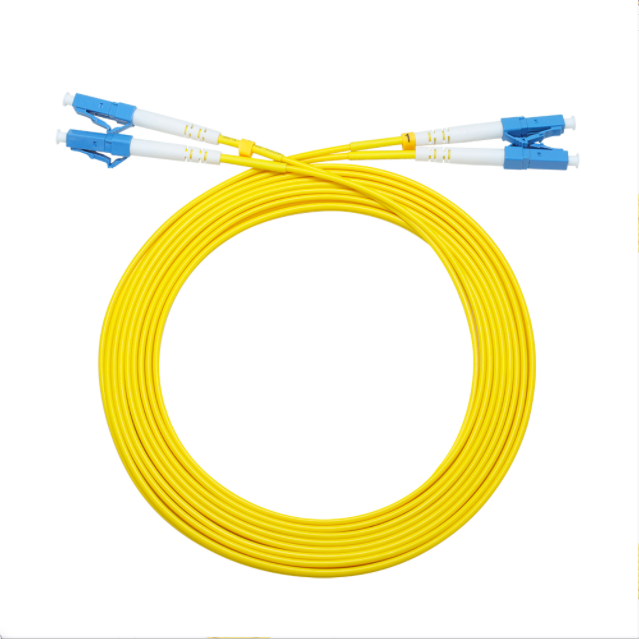

  • LC/UPC to LC/UPC Duplex OS2 2.0mm PVC LSZH Fiber Patch Cord,Fibre Jumper, Fibre Patch Leads 1m

LC/UPC to LC/UPC Duplex OS2 2.0mm PVC LSZH Fiber Patch Cord,Fibre Jumper, Fibre Patch Leads 1m

0 stars, based on 0reviews
Price:
$1.80$1.50 / piece
Length
  • 1M
  • 2M
  • 3M
  • 5M
  • 7M
  • 10M
  • 15M
  • 20M
  • Other length
Wholesale Price:
Quantity Price
1+ $1.50
3+ $1.42
Quantity: - + 10000items available
Contact Us

Item specifics

Length:
1M,2M,3M,5M,7M,10M,15M,20M,other length

LC/UPC to LC/UPC Duplex OS2 2.0mm PVC LSZH Fiber Patch Cord,Fibre Jumper, Fibre Patch Leads 1m



Fiber Optic Patch Cord LC to LC suited for equipment jumper cable, cross-connects, and work area connections. All patch cords are 100% factory tested,FC,SC,ST,LC,MU,MTRJ and hybrid Patch Cords are available in both multimode (62.5/125μm and 50/125μm) and single mode cable-types, in duplex and simplex versions.



Fetures :

Low insertion loss .<=0.3DB
High return loss . >=55DB
Precise end face inspection by microscope .
Environmentally stable in optical performance .
Available lengths: 1/2/3/4/5/10/15/30 meters.

Ceramic ferrules for long-lasting reliability and precision.



Application:

Fiber Optic Patch Cord LC to FC
1.Communication Workshop
2.FTTH
3.Local Area Network
4.Fiber Sensor
5.CATV

6.Fiber Optical Communication System.


Specification



Mode
SM
MM
Polish
UPC
APC
PC
Insertion Loss
Typical ≤0.2dB   Maximum ≤0.3dB
≤0.25dB
Return Loss
≥50dB
≥65dB
≥40dB
Interchangeability
≤0.2dB
Durability
≤0.2dB (1000 times)
Repeatability
≤0.1dB
Temperature
≤0.2dB (-40+85 sustain 100 hours)

Order Information :

FC/ PC-FC/ PC/ SM 9/125 SIMPLEX 3.0mm-2M PVC
1       2     1      2    3                       4             5       6      7

1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2Ferrule End-face: PC, UPC, APC
3 Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4 Cable Quantity: simplex or duplex
5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm
6 Cable Length: 1, 2, 3 meter or customized
7 Cable type: PVC, LSZH,

Special color 1 km minimum
