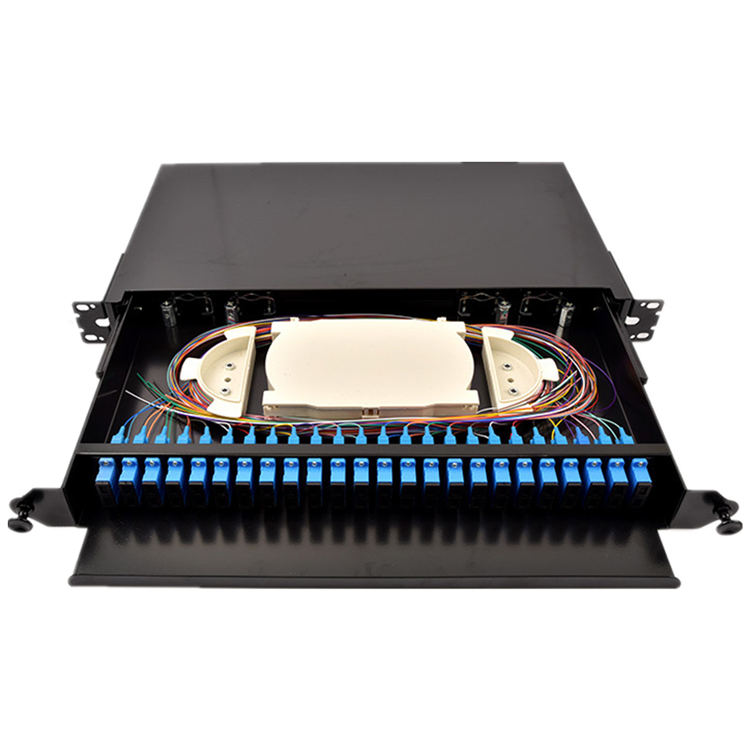

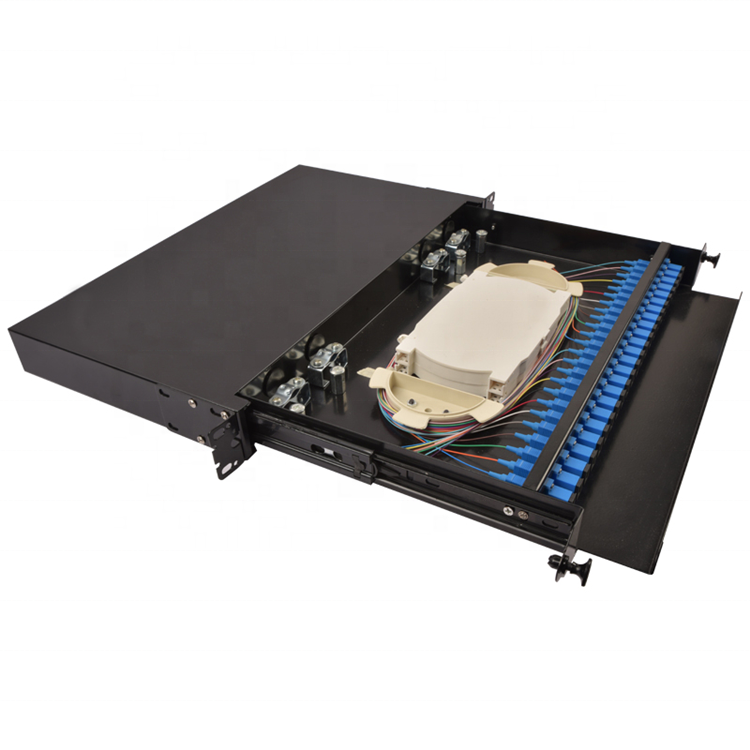

Telecom 1U 24 port fiber patch panel bandeja 19 rack 1ru optical distribution strong frame ODF
Product details
Product name fiber odf patch panel Connector Type Singlemode or multimode Module Type Drawer type Simplex or Duplex Max 24cores Connector SC Duplex or LC Simplex Dimension 1U, 19in Material cold rolled steel sheet Size 490*340*45MM Color Black white grey Warranty Limited life Product Keywords 24 port fiber patch panel
Description:
Fiber patch panel series of optic distribution boxes ,which are middle capacity and both side operation applicable in the branch connection of fiber termination ,working as distribution box.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
Feature:
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover
1 pcs splice trays (each 12 fibers)
Max. capacity 48 fibers
4 fiber cable entry ports at rear side
White or black color
| Product name | fiber odf patch panel |
| Connector Type | Singlemode or multimode |
| Module Type | Drawer type |
| Simplex or Duplex | Max 24cores |
| Connector | SC Duplex or LC Simplex |
| Dimension | 1U, 19in |
| Material | cold rolled steel sheet |
| Size | 490*340*45MM |
| Color | Black white grey |
| Warranty | Limited life |
| Product Keywords | 24 port fiber patch panel |
Description:
Fiber patch panel series of optic distribution boxes ,which are middle capacity and both side operation applicable in the branch connection of fiber termination ,working as distribution box.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
Feature:
Standard size, light weight and reasonable structure
Slide out drawer for easy cable management
FC, SC, ST, LC adapter patch panel for option
Front access panel design for easy operation
Suitable for 19’’ or 23’’ standard optic distribution cabinets
With metal front cover
1 pcs splice trays (each 12 fibers)
Max. capacity 48 fibers
4 fiber cable entry ports at rear side
White or black color
Specification
Model TW-DR02-24 Type 19inch Rock Mount Material Cold Rolled Steel Size W*D*H (mm) 490*340*45MM Max capacity (core) 48 Included accessories 4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws Product color White or black color
Working temperature -40~+85°C Storage temperature -40~+85°C
Model | TW-DR02-24 |
Type | 19inch Rock Mount |
Material | Cold Rolled Steel |
Size W*D*H (mm) | 490*340*45MM |
Max capacity (core) | 48 |
Included accessories | 4pcs cable fix accessories, heat shrink tubes, cable ties, number tapes, adapter screws |
Product color | White or black color |
Working temperature | -40~+85°C |
Storage temperature | -40~+85°C |
