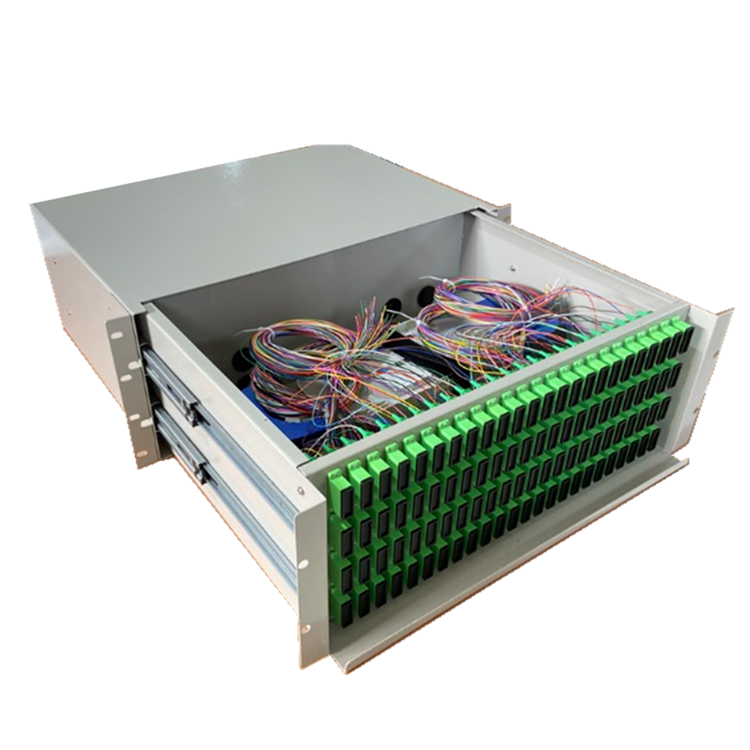

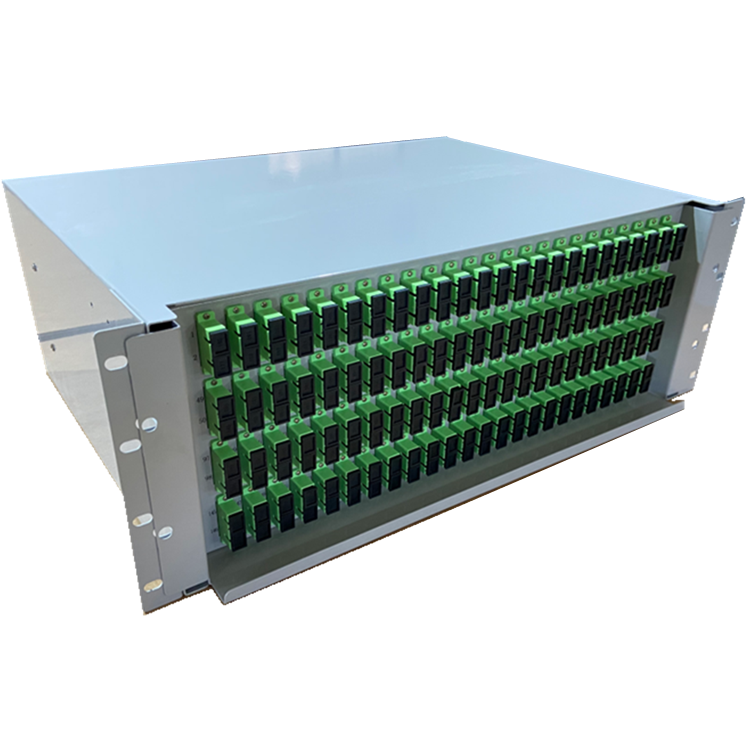

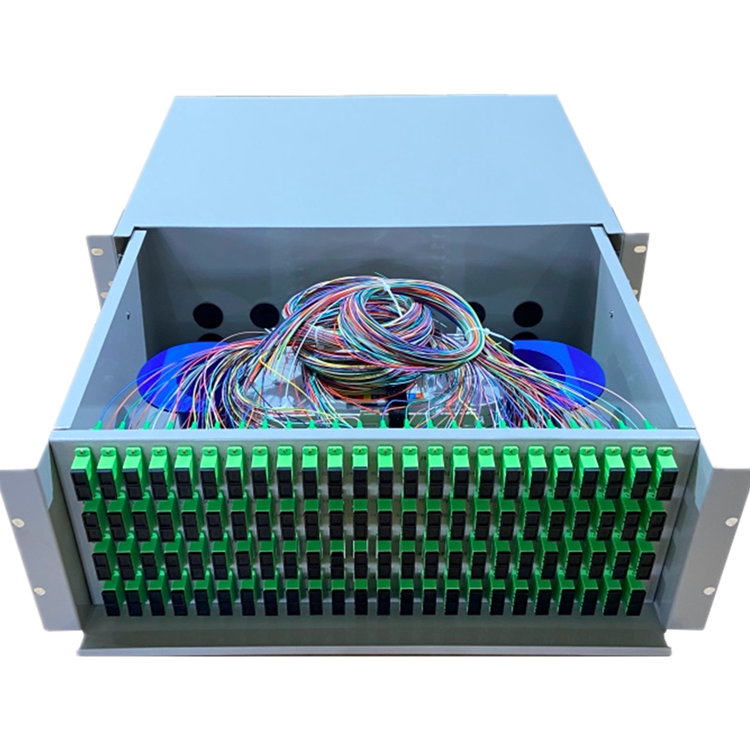

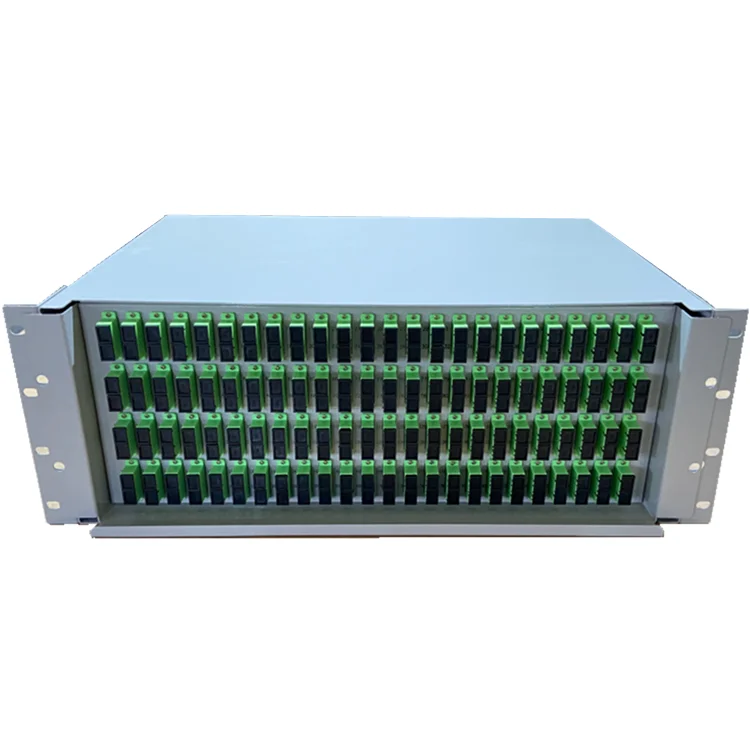

19 inch 4U 192 cores SC Duplex Pull able drawer fiber splice and patch box Sliding Fibre Optic Patch Panel
19 inch 4U 192 cores SC Duplex Pull able drawer fiber splice and patch box Sliding Fibre Optic Patch Panel
Product details
Product name 4U Fiber Patch and Splice Panel Connector Type Singlemode or multimode Module Type Drawer type Simplex or Duplex Max 192 cores Connector SC Simplex or LC Duplex Dimension 4U, 19" Material cold rolled steel sheet Size 485*295*180mm Color Black white grey Warranty Limited life Product Keywords Fibre Optic Patch Panel,Sliding Fibre Optic Patch Panel,4U 192 cores Sliding Fibre Optic Patch Panel
4U 192 Fibers Sliding Fiber Patch panel ,which are middle capacity and both side operation applicable in the branch connection of fiber termination ,working as distribution box.It is with standard 19 inch size and properly designed to control the bend radius of thecable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
Features:
❖ Standard size, light weight and reasonable structure
❖ Slide out drawer for easy cable management
❖ FC, SC, ST, LC adapter patch panel for option
❖ Front access panel design for easy operation
❖ Suitable for 19’’ or 23’’ standard optic distribution cabinets
❖ With metal front cover
❖ 8 pcs splice trays (each 24fibers)
❖ Max. capacity 192 fibers
❖ 4 fiber cable entry ports at rear side
❖ White or black color
| Product name | 4U Fiber Patch and Splice Panel |
| Connector Type | Singlemode or multimode |
| Module Type | Drawer type |
| Simplex or Duplex | Max 192 cores |
| Connector | SC Simplex or LC Duplex |
| Dimension | 4U, 19" |
| Material | cold rolled steel sheet |
| Size | 485*295*180mm |
| Color | Black white grey |
| Warranty | Limited life |
| Product Keywords | Fibre Optic Patch Panel,Sliding Fibre Optic Patch Panel,4U 192 cores Sliding Fibre Optic Patch Panel |
4U 192 Fibers Sliding Fiber Patch panel ,which are middle capacity and both side operation applicable in the branch connection of fiber termination ,working as distribution box.It is with standard 19 inch size and properly designed to control the bend radius of thecable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.
Features:
❖ Standard size, light weight and reasonable structure
❖ Slide out drawer for easy cable management
❖ FC, SC, ST, LC adapter patch panel for option
❖ Front access panel design for easy operation
❖ Suitable for 19’’ or 23’’ standard optic distribution cabinets
❖ With metal front cover
❖ 8 pcs splice trays (each 24fibers)
❖ Max. capacity 192 fibers
❖ 4 fiber cable entry ports at rear side
❖ White or black color
Spare Parts:
No. Description 24 Cores 48 Cores 72 Cores 96 Cores 144 Cores 192 Cores 1 Splice Trays 1 2 3 4 6 8 2 SC DX Adapter 12 24 36 48 72 96 3 Optic fiber pigtail 24 48 72 96 144 192
| No. | Description | 24 Cores | 48 Cores | 72 Cores | 96 Cores | 144 Cores | 192 Cores |
| 1 | Splice Trays | 1 | 2 | 3 | 4 | 6 | 8 |
| 2 | SC DX Adapter | 12 | 24 | 36 | 48 | 72 | 96 |
| 3 | Optic fiber pigtail | 24 | 48 | 72 | 96 | 144 | 192 |
