6%OFF
  • 1X16 PLC Optical Splitter Standard LGX Cassette lgx Box Type SC/UPC Connector manufacturing

1X16 PLC Optical Splitter Standard LGX Cassette lgx Box Type SC/UPC Connector manufacturing

0 stars, based on 0reviews
Price:
$9.00$8.50 / piece
Quantity: - + 10000items available
Contact Us

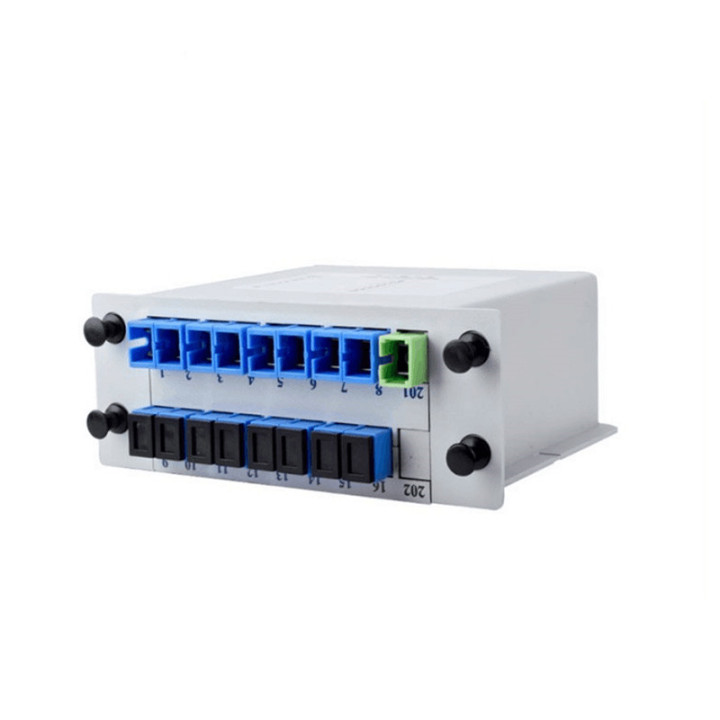

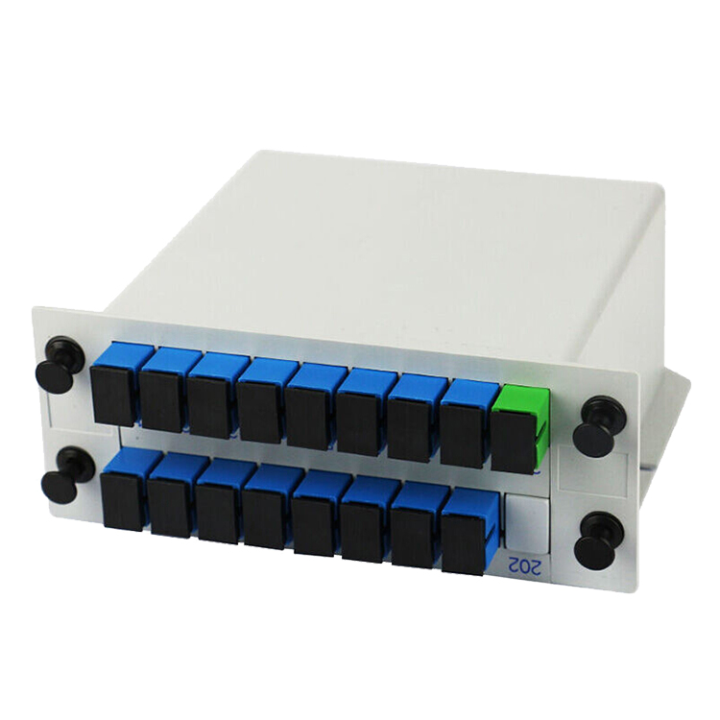

 1x16 LGX Box Cassette Card Inserting  PLC Splitter Module is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

1X16 PLC Optical Splitter Standard LGX Cassette lgx Box Type SC/UPC Connector manufacturing



Application:



  • Fiber to the point (FTTX)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Test equipment
  • Fiber to the home (FTTH)
  • Passive optical networks(PON, GEPON)





 Specification:



Product Name     FTTH SC UPC 1*16 LGX Box PLC Optical Splitter
Parameters 1x2 1x4 1x8 1x16 1x321x64
Operating Wavelength (nm)     1260~1650
Fiber Type     G657A
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.920.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.52.0
Return Loss 55/50 55/50 55/50 55/50 55/5055/50
Directivity 55 55 55 55 5555
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.50.5

Temperature Stability

(dB)

 0.4 0.4 0.4 0.5 0.50.5
 Operating Temperature (℃)     -40~85℃









Features



  • Good channel-to-channel uniformity
  • High reliability and small size
  • Low Insertion loss and Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: from 1260nm to 1650nm
  • High Reliability and Stability
  • Standard LGX Metal/Plastic Box
  • Protective Package
  • Suitable for Outdoor Use
