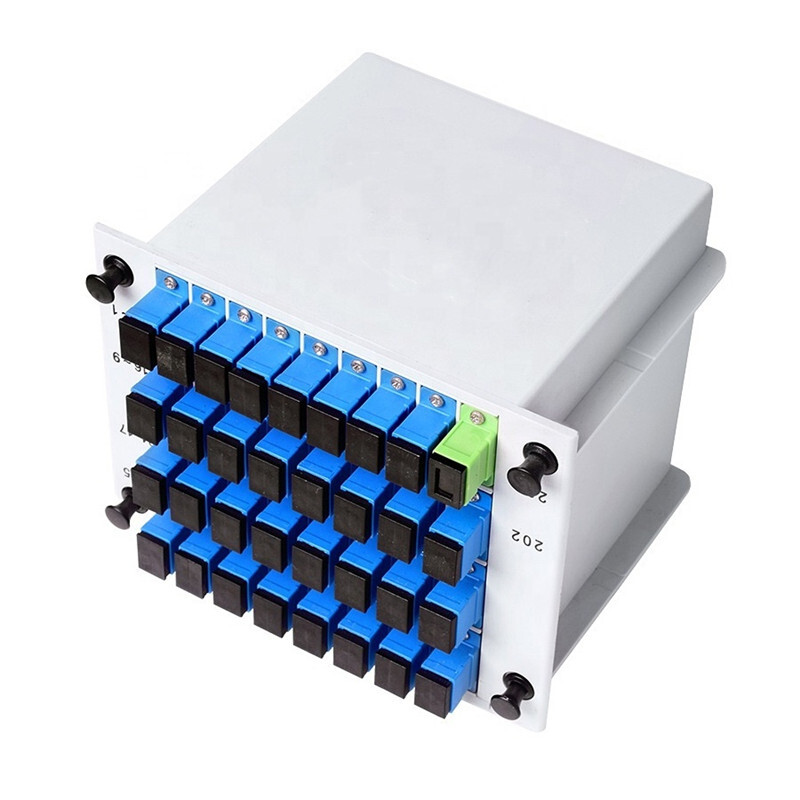

1x32 LGX Box Cassette Card Inserting PLC Splitter Module is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Application:
- Fiber to the point (FTTX)
- Local area networks (LAN)
- Cable television (CATV)
- Test equipment
- Fiber to the home (FTTH)
- Passive optical networks(PON, GEPON)
Specification:
Product Name | FTTH SC 1*16 LGX Box PLC Optical Splitter | |||||
Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Fiber Type | G657A | |||||
Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
Return Loss | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
Directivity | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temperature Stability (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Operating Temperature (℃) | -40~85℃ |
Features
- Good channel-to-channel uniformity
- High reliability and small size
- Low Insertion loss and Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: from 1260nm to 1650nm
- High Reliability and Stability
- Standard LGX Metal/Plastic Box
- Protective Package
- Suitable for Outdoor Use
- Good channel-to-channel uniformity
- High reliability and small size
- Low Insertion loss and Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: from 1260nm to 1650nm
- High Reliability and Stability
- Standard LGX Metal/Plastic Box
- Protective Package
- Suitable for Outdoor Use
