Original Japan Fujikura Optical Fibre Equipment Fusion Splicer 45S With Fiber Cleaver updated from 45S+ splicing machine

The 45S fusion splicing machine is the essential splicer based on active clad alignment technology with features, Fast Operation, User-friendly Design, Versatile Functionality and Consistent Quality.

Features

1.Faster operation

a.Simultaneous fiber preparation

Fiber preparation, stripping, cleaving, and setting in the splicer usually needs repeating separately for both left and right-side fibers. The 45S process does away with that and enables simultaneous fiber preparation thanks to the new SS05 double fiber stripper, the new AD-16A fiber adapter for the CT50 cleaver and the clever set plate mechanism of the 45S itself.

b.Simultaneous fiber stripping

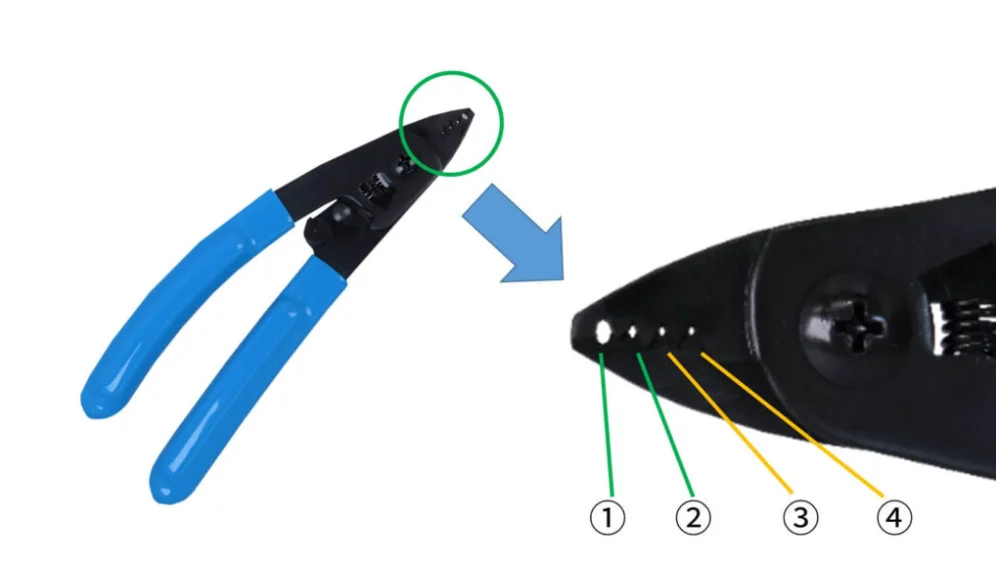

The SS05 fiber stripper is equipped with four blades: ① for 2mm/3mm, ② for 900µm,

③④ for 250µm fibers. Using blades ③ and ④ allows simultaneous stripping of 250µm fibers.

c.Simultaneous fiber cleaving

The new AD-16A fiber adapter for the CT50 cleaver is equipped with two grooves. Placing one fiber in each groove provides simultaneous cleaving.

d.Simultaneous fiber setting

Previous fusion splicers required two-handed operation to close fiber clamp and hold the fiber. Thanks to a new clamp mechanism, the 45S close with fiber setting and provides one-handed fiber setting and simultaneous fiber setting.

e.Faster fiber transportation time

The 45S is equipped with a mechanism linking the wind protector and fiber clamp so when you open wind protector, the fiber clamps opens automatically.

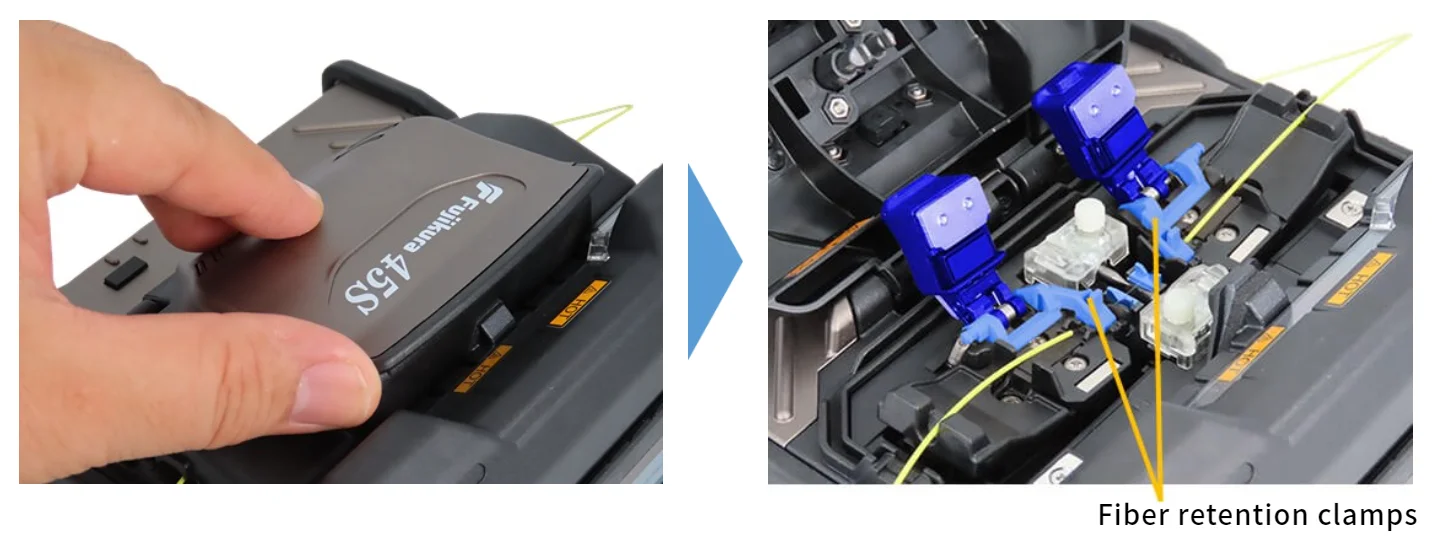

The 45S is also equipped with retention clamps which are reputed by our conventional fusion splicer models. The retention clamps prevent the fiber from jumping out after the fiber clamps are opened.

These mechanisms work in tandem to provide easy fiber handling and a reduction in the time it takes to transfer the fiber to the heater.

f.Faster heating time

The heater for shrinking the reinforcing sleeve is designed to heat the reinforcing sleeve between two heaters in the front and rear. It shorten 15% of the heating time in case of using FP-03 sleeve.

g.30% faster than previous model

Thanks to the way the 45S streamlines the preparation process, reduces transport time and delivers faster heating, it is 30% faster than the 41S+ it replaces.

2.User-friendly design

a.Movable LCD Monitor

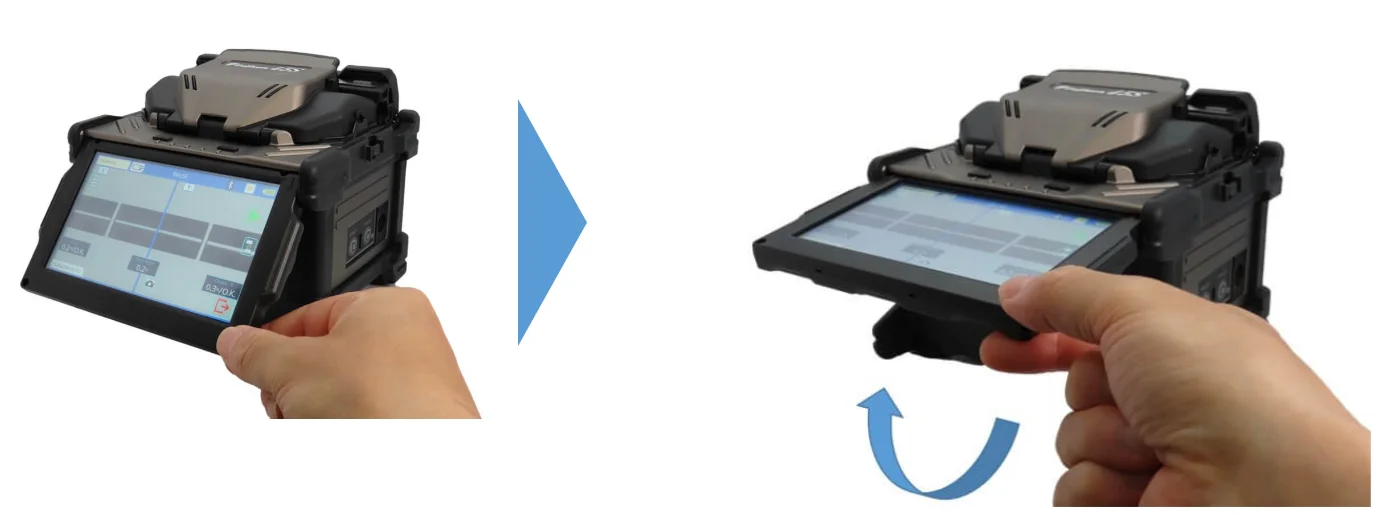

The 45S is equipped with a 4.95 inches size movable LCD monitor.

It provides visibility especially for outside use even though under the sunshine.

b.Easy Sleeve Positioning

The space between the edges of the left and right fiber clamp edges is 60mm, as per the image to the below.

This distance allows for easy sleeve positioning, with the splice point positioned in the middle of the sleeve.

The scale on the heater shows the guide for other sleeve lengths, for example 40mm.

c.Removable battery

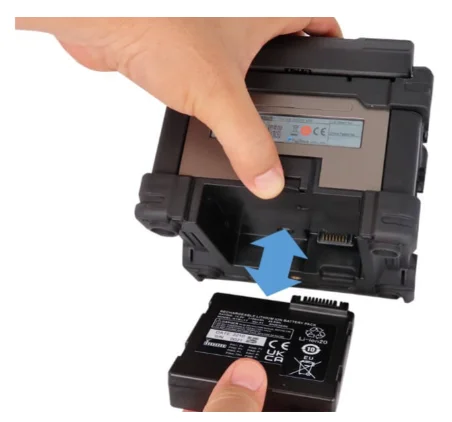

The removable battery makes replacement easy and convenient.

d.Cubic Shape

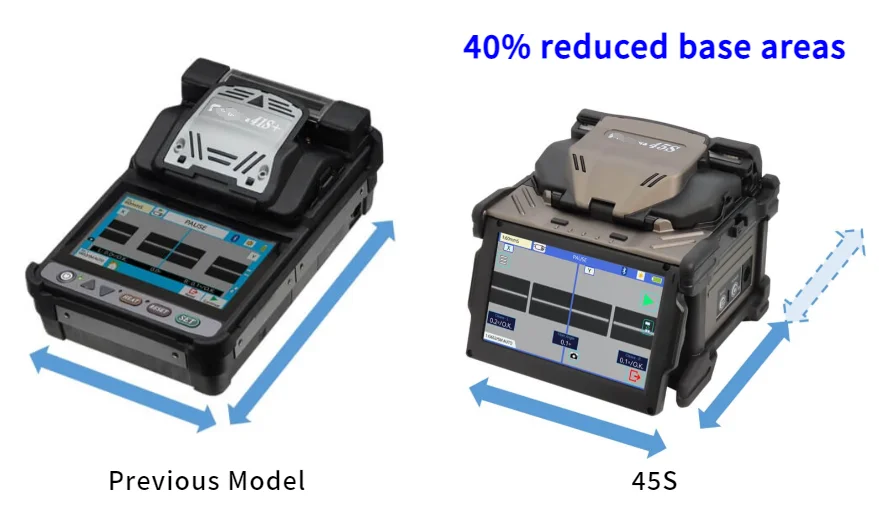

The cube shape provides a reduced base area while also giving the user a large operating space.

e.Carrying case with Work Tray

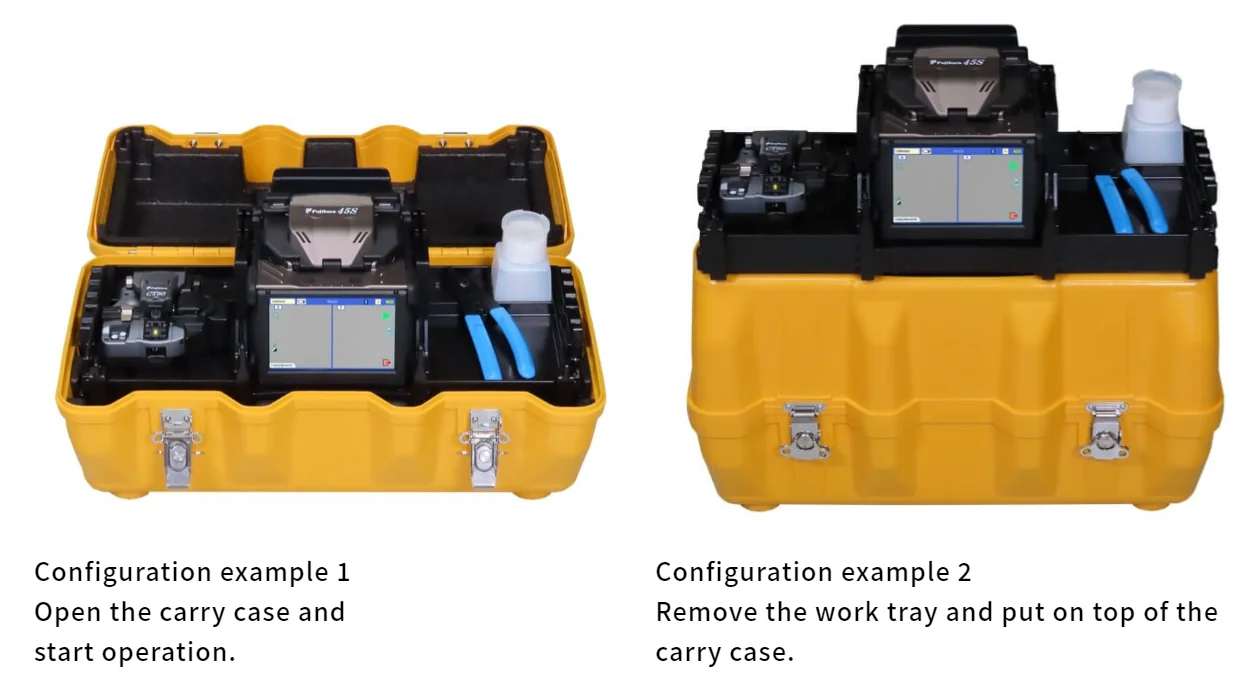

The configurable 45S carrying case provides various usage configurations.

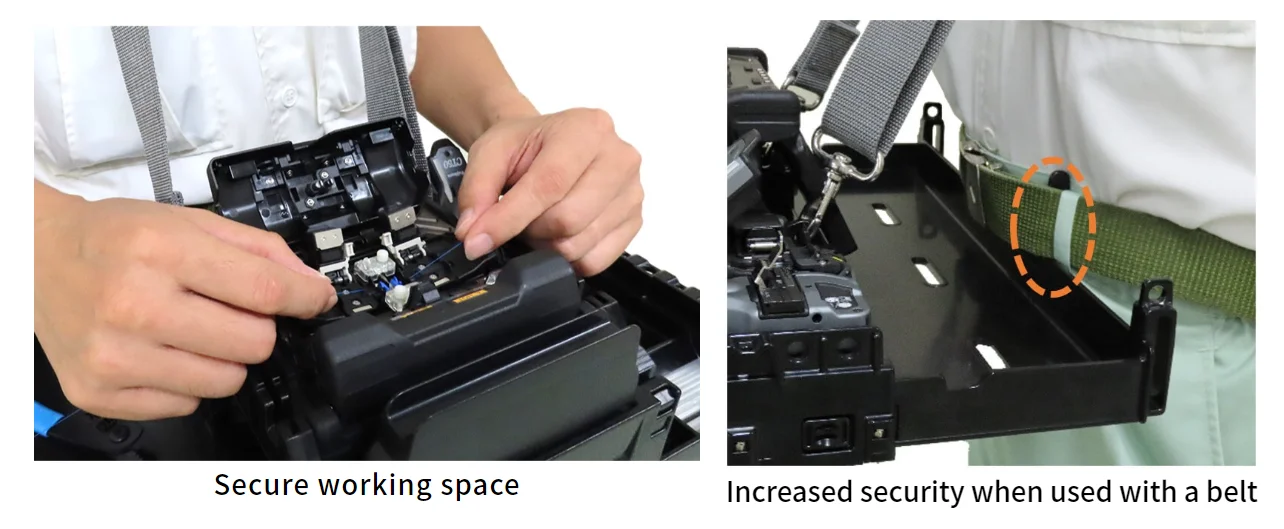

Removing the work tray from the carry case allows the tray to expand. Using the work tray with the strap provides a portable work surface and the strap can be fixed to the work tray at the sides of the splicer to secure the usability
