TW-FTB108A Optical Terminal Box With 8 X SC/APC Adapters and Single Mode Pigtails Nap Optic Fiber Distribution Box
Description:
The product is used in the end termination of residential building and small independent building,to fix and splice with pigtails.
Features:
A.small size, light weight, good-looking appearance;
B.installed on the wall, with mechanical protection function;
C.max capacity is 4-8 cores,and 4-8 adapter outputs,available for FC,SC,ST adapter.
A.small size, light weight, good-looking appearance;
B.installed on the wall, with mechanical protection function;
C.max capacity is 4-8 cores,and 4-8 adapter outputs,available for FC,SC,ST adapter.
Technical index:
1. Fiber radius of curvature: ≥30mm
2. Optical disk additional loss: ≤ 0.01dB
3. Temperature Range: - 10°C ~ + 80°C
4.A nti lateral pressure: ≥2000N / 10 cm
5. Shock resistance: ≥20N.m
Specification:
1. Fiber radius of curvature: ≥30mm
2. Optical disk additional loss: ≤ 0.01dB
3. Temperature Range: - 10°C ~ + 80°C
4.A nti lateral pressure: ≥2000N / 10 cm
5. Shock resistance: ≥20N.m
Specification:

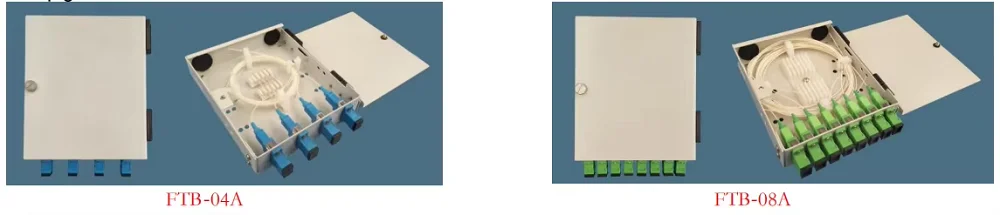

| Model | FTB-104A | FTB-108A |
| Size (mm):L×W×H | 115*135*42 | 115*135*42 |
| Cable diameter(mm) | 5~12 | 5~12 |
| Inlet/outlet | 2/4 | 2/8 |
| Capacity | 4(single core) | 8(single core) |
| Net weight (kg) | 0.49 | 0.49 |

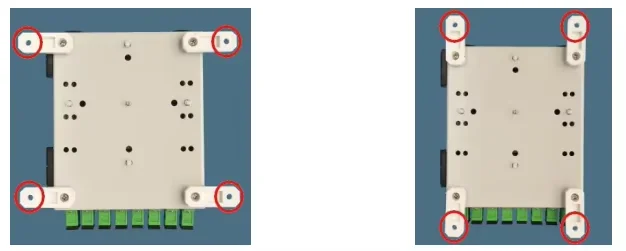

1. As the picture shown,measure 4 base mounting holes ,after drilling on the wall,fix the box on the wall with expansion screws.

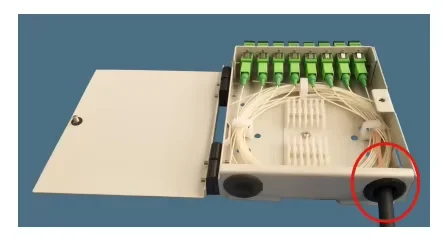

2. Strip the cable,take out the required optical fiber numbers. Fix the cable with the clamp.

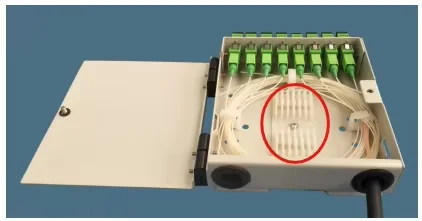

3. Put the splicing cable and pigtails to the slot of special splice tray.

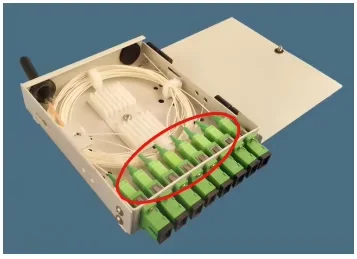

4. Coil the excess cable in the special splice tray,fix them with nylon cable tie,and then insert the end pigtail into the adapter at the exit.

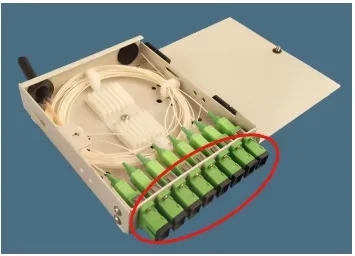

5. Tighten the adapters, lead the pigtails out through the box.(optional for FC,SC,ST adapters)
6. Close the cover, tighten the specific Screws, finish installation.
